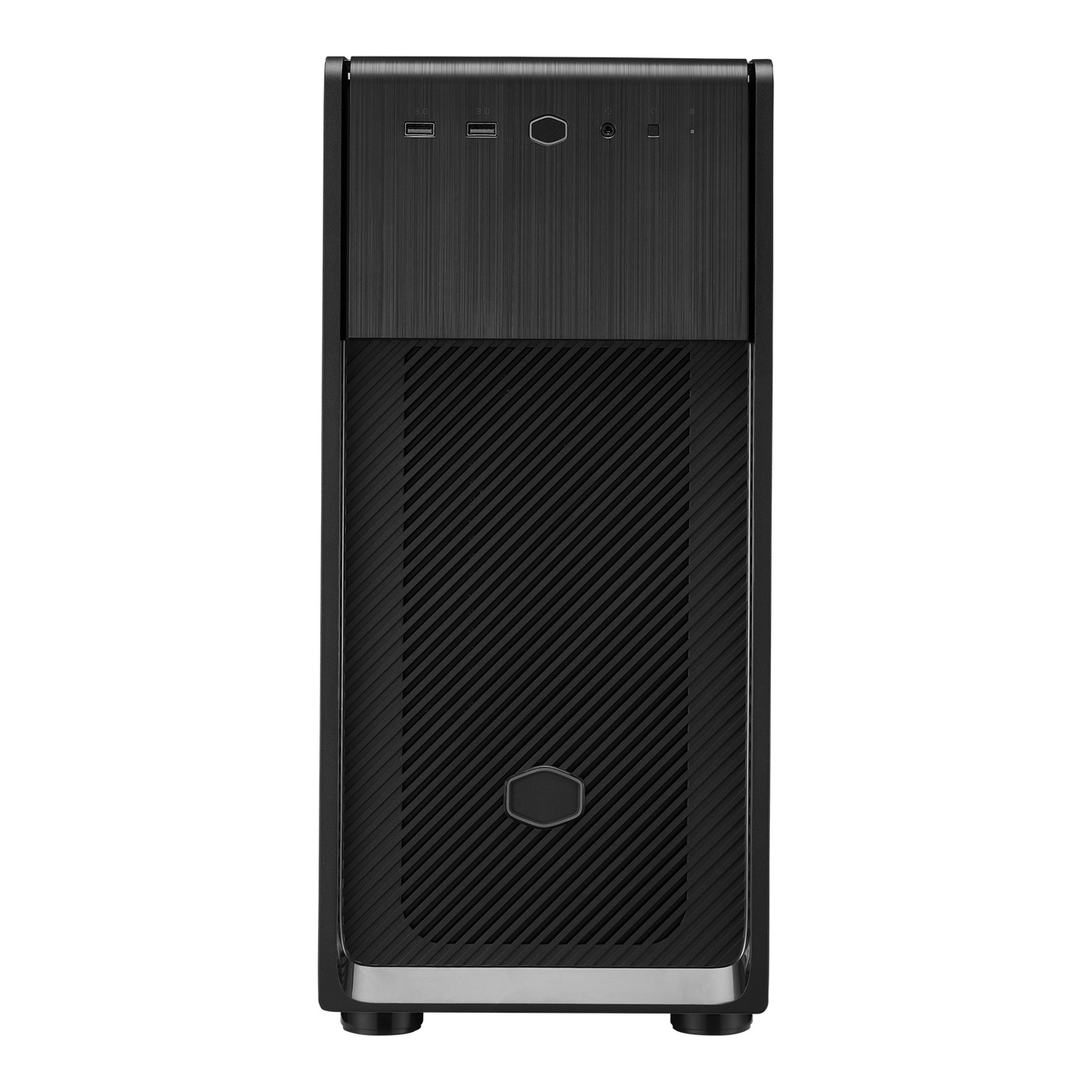

| Model Number | E500-KGNN-S00 (TG), E500-KNNN-S00 (Steel), E500-KG5N-S00 (TG, ODD), E500-KN5N-S00 (Steel, ODD) |
|
|
| Materials | Steel, Plastic, Tempered Glass |
|
| Dimensions (L x W x H) | 409 x 204 x 455mm (incl. Protrusions), 402 x 204 x 455mm (excl. Protrusions), 464 x 204 x 455mm (incl Protrusions, ODD), 457 x 204 x 455mm (excl. Protrusions, ODD) |
|
| Volume | 37.29L (E500-KGNN-S00, E500-KNNN-S00) (exlc. Protrusions), 42.40L (E500-KG5N-S00, E500-KN5N-S00) (exlc. Protrusions) |
|
| Motherboard Support | Mini ITX, Micro ATX, ATX |
|
|
|
| 5.25" Drive Bays | 0 (E500-KGNN-S00, E500-KNNN-S00), 1 (E500-KG5N-S00, E500-KN5N-S00) |
|
| 2.5" / 3.5" Drive Bays (Combo) | 2 |
|
| 2.5" Drive Bays | 3 (E500-KGNN-S00, E500-KNNN-S00), 5 (E500-KG5N-S00, E500-KN5N-S00) |
|
| I/O Panel | 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic) |
|
| Pre-installed Fans - Rear | 1x 120mm |
|
| Fan Support - Top | 2x 120mm, 2x 140mm |
|
| Fan Support - Front | 2x 140mm, 3x 120mm (E500-KGNN-S00, E500-KNNN-S00), 2x 120mm (E500-KGNN-S00, E500-KNNN-S00), 3x 120mm (remove ODD bracket) (E500-KGNN-S00, E500-KNNN-S00) |
|
| Fan Support - Rear | 1x 120mm |
|
| Radiator Support - Top | 120 / 240mm (32mm max motherboard component height) |
|
| Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm (Remove ODD) (E500-KG5N-S00, E500-KN5N-S00) |
|
| Radiator Support - Rear | 120mm |
|
| Clearance - CPU Cooler | TG: 161mm, Steel: 163mm |
|
| Clearance - PSU | 160mm (E500-KGNN-S00, E500-KNNN-S00), 180mm (E500-KG5N-S00, E500-KN5N-S00) |
|
| Clearance - GFX | 350mm (w/o front fans & radiator) (E500-KGNN-S00, E500-KNNN-S00), 400mm (w/o front fans & radiator) (E500-KG5N-S00, E500-KN5N-S00) |
|
|
| Dust Filters | Front, Top, Bottom |
|
| Power Supply Support | Bottom Mount, ATX |
|
|
